Integrated Bridge Type Single Head Polishing Machine is used to polish the granite stone.
| Quantity: | |
|---|---|
DLISPM-2000
DIALEAD
Single head automatic polishing machine is widely used for surface grinding & polishing, such as tombstones, slabs with automatic operation.
Feature:
1, perfect choice for granite stone polishing. Widely used in slab and monument polish.
2, adopt PLC intelligent system,Through the LCD touch screen man-machine dialogue, intelligent control is realized. It can also be controlled by the mechanical button at the bottom of the screen, and the two methods of touch and physical control can be freely switched.
3, the control panel has 8 different language like Chinese, English, Russian, Turkish, Arabia, Spanish, Portugal, Vietnam etc/
4, Select international and domestic well-known brands for electrical accessories and mechanical accessories, with reasonable mechanical structure and perfect processing technology. The machine has strong rigidity and stable performance.
5，The grinding head, the upper part of the grinding head and the bearings of key parts are lubricated in the central automatic lubrication system
Model | Unit | DLDTMF-900 | DLDTMF-1200 | DLDTMF-1800 |
Main Motor | kw | 15 | 15 | 15 |
R.P.M of polishing head | r/min | 560 | 560 | 560 |
Traverse feeding speed of polishing head | mm/min | 0-5600 | 0-5600 | 0-5600 |
Lengthways feeding speed of Polishing head | mm/min | 0-4300 | 0-4300 | 0-4300 |
Supplied by User | MPa | 0.35-0.5 | 0.35-0.5 | 0.35-0.5 |
Required air source | m³/min | 0.15-0.30 | 0.15-0.30 | 0.15-0.30 |
Output | m²/h | 2-2.5 | 2.5-3 | 3-3.5 |
Max. polishing size (L x W x H) | mm | 3000*900*120 | 3000*1200*120 | 3000*1800*120 |
Overall dimensions (L x W x H) | mm | 6500*2200*2000 | 6500*2500*2000 | 6500*3100*2000 |
Main motor power | KW | 15 | 15 | 15 |
Water consumption | m³/h | 4 | 4 | 4 |
Approximate weight | kg | 2000 | 2500 | 3000 |
v Note: All technical data can be customized to meet your specific needs.
Required Tools
 |  |

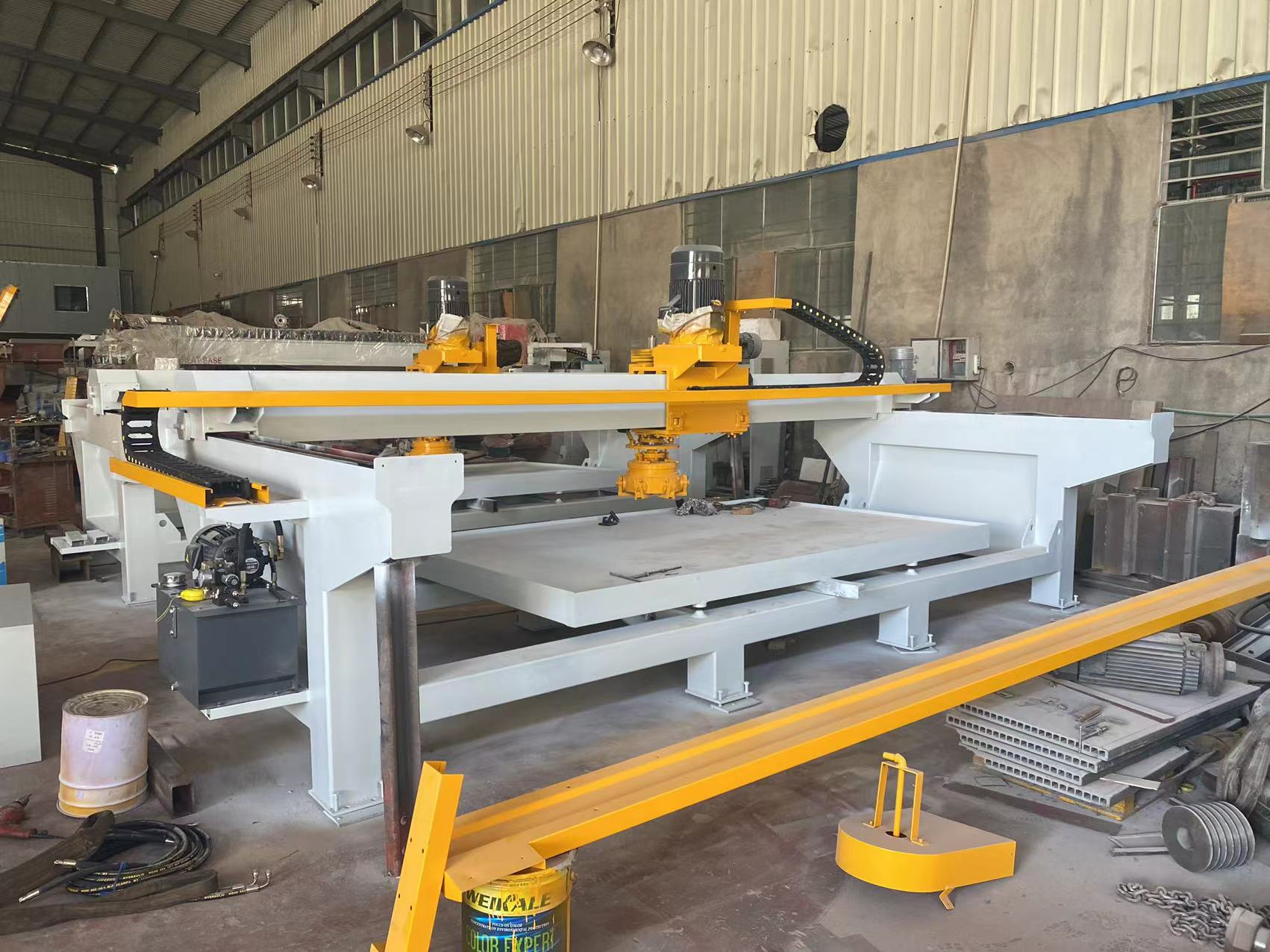

Machine in Workshop
 |  |
 |  |
Application of single head polishing machine
 |  |  |
After-sales Service
1. Dialead Stone Machinery offer one year’s warantee
2. For wearing parts, Dialead Stone Machinery send one set more with the machine container.
3. Dialead Stone Machinery will send the experienced technicians to your factory to install the machine and teach your workers to operate the machine.
Workshop
Machine Loading
Certificate
Our Partners
Dialead Enterprise
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
Stone Exhibition
Dialead Stone Machinery has attended many stone exhibition like Xiamen stone fair, italy verona stone fair,russian moscow stone fair, turkey izmir stone fair, iran tehran stone fair etc. Due to the corona virus spreading in the world since 2020, we have missed the stone exhibition worldwide. Hope we can win over the war against corona virus, Dialead enterprise is looking forward to meeting you again soon!
