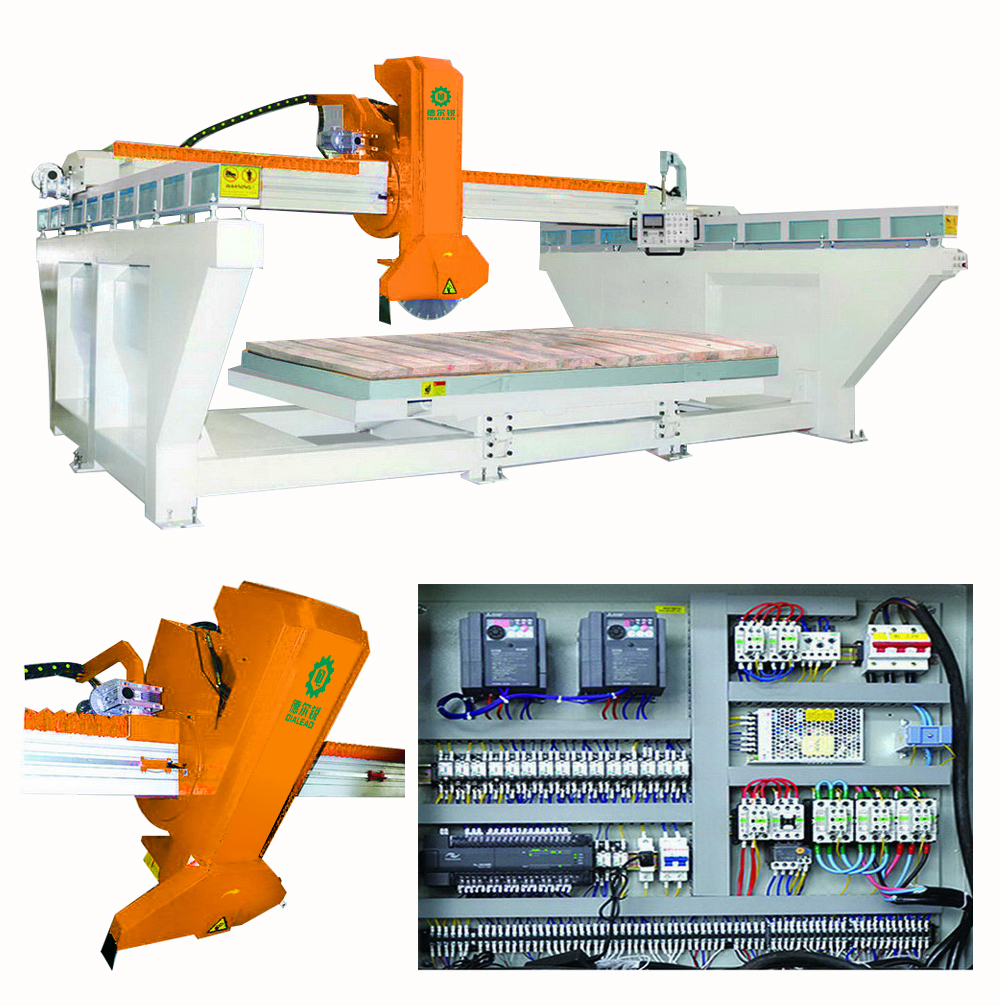

The cutting head of the cutting machine is automatically tilted by 45 degrees.
| Quantity: | |
|---|---|
DLHXQ
DIALEAD
Laser Bridge Stone Cutting Machine (Machine Head Chamfer adopts microcomputer control, touch-type operation interface, and wireless remote control. it makes the man-machine dialogue very flexible and convenient.
The main control components are all international famous brands. The cross beam adopts oil-immersed double V-shaped track. the horizontal cutting adopts stepless frequency conversion speed regulation. The longitudinal slicer adopts linear guide rail and high-precision magnetic ruler for counting, which ensures the smooth operation and stable accuracy of the machine in running.
The saw blade is automatically tilted by 45 degrees. The worktable is automatically positioned every 45 degrees
within the range of 360 degrees. It can do jump positioning. This machine can process rectangles, octagons, arcs, circles, and inverted medium and small angles.
Technical Data:
MODEL | UNIT | DLHXQ |
BLADE DIAMETER | MM | 350-625 |
MAX WORKING DIMENSION | MM | 3200*2000*180 |
WORKBENCH DIMENSION | MM | 3200*2000 |
WORKBENCH TITLTING DEGREE | N | 0-85 |
WORKBENCH ROTATING DEGREE | N | 0-90/360 |
HEAD TITLTING DEGREE | N | 0-45 |
MAIN MOTOR POWER | KW | 18.5 |
MACHINE WEIGHT | KG | 6500 |
OVERALL DIMENSION | MM | 6000*4800*2800 |
Machine Photo
Different Stone Application:
Machine Spare Parts
 |  |  |
 |  |  |
Required Tools
 |  |
After-sales Service
1. Dialead Stone Machinery offer one year's warranty
2. For consumables, Dialead Stone Machinery sends one extra set with the machine container.
3. Dialead Stone Machinery will send the experienced technicians to your factory to install the machine and teach your workers to operate the machine.
Workshop
Machine Loading
Certificate
Our Partners
Dialead Enterprise
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
Stone Exhibition
Dialead Stone Machinery has attended many stone exhibition like Xiamen stone fair, italy verona stone fair,russian moscow stone fair, turkey izmir stone fair, iran tehran stone fair etc. Due to the corona virus spreading in the world since 2020, we have missed the stone exhibition worldwide. Hope we can win over the war against corona virus, Dialead enterprise is looking forward to meeting you again soon!
