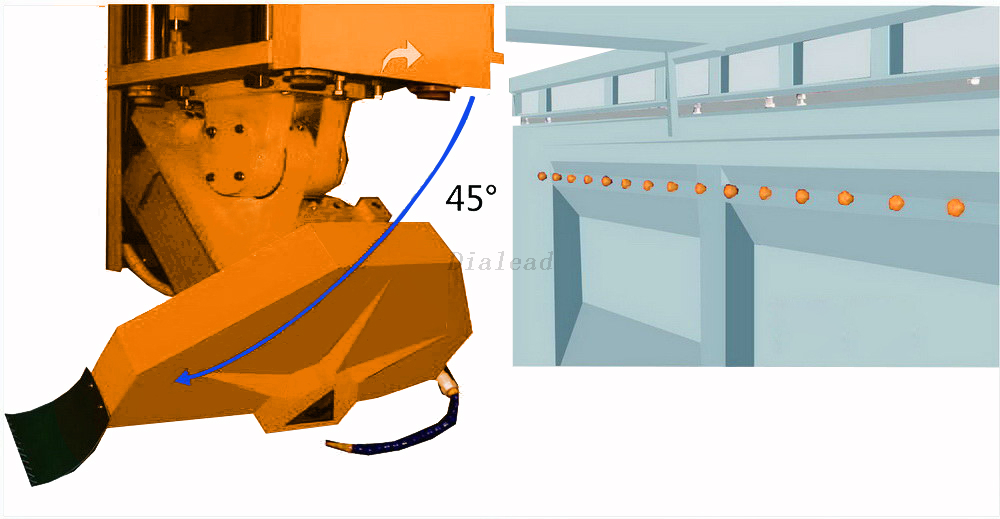

The saw blade of bridge cutting machine is automatically tilted by 45 degrees. The worktable is automatically positioned every 45 degrees within the range of 360 degrees. It can do jump positioning. This machine can process rectangles, octagons, arcs, circles, and inverted medium and small angles.
This stone cutting machine is equipped with a profiling system, so it can be used for not only edge cutting, chamfering, but also profiling. (optional)
| Quantity: | |
|---|---|
DHQ600D
DIALEAD
Laser Bridge Stone Cutting Machine (Saw Blade Chamfer) adopts microcomputer control, touch-type operation interface, and wireless remote control. it makes the man-machine dialogue very flexible and convenient.
The main control components are all international famous brands. The cross beam adopts oil-immersed double V-shaped track. the horizontal cutting adopts stepless frequency conversion speed regulation. The longitudinal slicer adopts linear guide rail and high-precision magnetic ruler for counting, which ensures the smooth operation and stable accuracy of the machine in running.
The saw blade is automatically tilted by 45 degrees. The worktable is automatically positioned every 45 degrees within the range of 360 degrees. It can do jump positioning. This machine can process rectangles, octagons, arcs, circles, and inverted medium and small angles.
This bridge cutting machine is equipped with a profiling system, so it can be used for not only edge cutting, chamfering, but also profiling. (optional)
Technical Data:
MODEL | UNIT | DLHQ600D |
BLADE DIAMETER | MM | 350-600 |
MAX WORKING DIMENSION | MM | 3200*2000*200 |
WORKBENCH DIMENSION | MM | 3200*2000 |
MAX VERTICAL STROKE | MM | 500 |
WORKBENCH TITLTING DEGREE | N | 0-85 |
WORKBENCH ROTATING DEGREE | N | 0-90/360 |
MAIN MOTOR POWER | KW | 18.5 |
MACHINE WEIGHT | KG | 6200 |
OVERALL DIMENSION | MM | 6000*4800*3200 |
TOTAL POWER | 24.5 |
Machine Photo
Different Stone Application:
Machine Spare Parts
 |  |  |
 |  |  |
Required Tools
 |  |
After-sales Service
1. Dialead Stone Machinery offer one year’s warantee
2. For wearing parts, Dialead Stone Machinery send one set more with the machine container.
3. Dialead Stone Machinery will send the experienced technicians to your factory to install the machine. we will teach your workers to operate the machine.
