DL-12D
DIALEAD

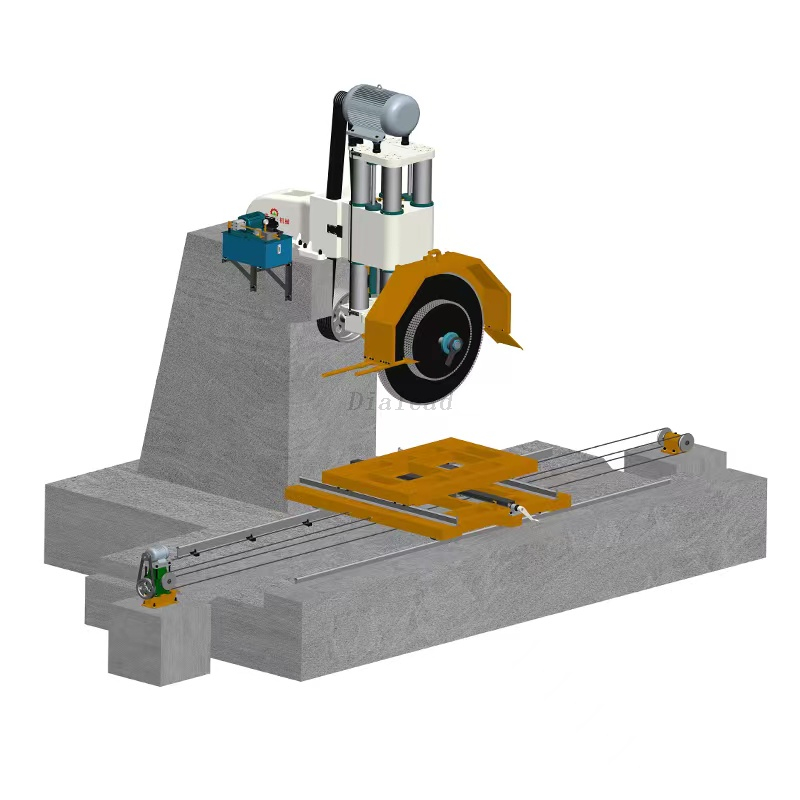

Hydraulic single-arm multiblade block cutter is a multi-blade cutting machine used to cut block into slabs of different thickness. The block cutter can hold 22 pieces of saw blade at most at same time. This machine is of simple structure but of strong function. The main body is cast as a whole and then processed by the machining center. It has high precision and small deformation, which improves the assembly accuracy and so ensures the stability and cutting precision of the machine.
The machine adopts double hydraulic and four guide columns to lift. The machine has good rigidity, small gap, and is not affected by thermal expansion and contraction of the external environment, so the machine can effectively reduce shake in cutting, so the machine can ensure high cutting efficiency, low diamond segment consumption, and high flatness of the output. Meantime, this machine adopts oil-immersed lubrication systems which can greatly reduce maintenance frequency and maintenance costs and increase the service life of the equipment.
The upper/lower guide columns are made of chrome-plated round steel, which improves the surface smoothness and wear-resistance of the guide columns, minimizes gap and shake in cutting, and extend the service life of the machine.
A new type of composite material "Nano Nylon" cloth is used for the dust-proof of the guide columns and the hydraulic rods, which features waterproof, dust-proof and anti-wear. The dust-proof cloth can be replaced easily with a zipper.
Technicial Data
| Model | Unit | DL-12D | DL-16D | DL-22D |
| Main Motor Power | kw | 55 | 75 | 110/132 |
| Blade Diameter | mm | 1650/2200 | 1650/2200 | 1650/2200 |
| Lifting Stroke | mm | 1000*1300 | 1000*1300 | 1000*1300 |
| Max Cutting Size | kw | 2400*1550*950 | 2400*1550*950 | 2400*1550*950 |
| Water Consumption | L/Min | 200 | 300 | 400 |
Total Weight | KG | 8000 | 8700 | 11500 |
Customer Case
 |  |
 | |
Required Tools
|  |
After-sales Service
1. Dialead Stone Machinery offer one year's warranty
2. For consumables, Dialead Stone Machinery sends one extra set with the machine container.
3. Dialead Stone Machinery will send the experienced technicians to your factory to install the machine and teach your workers to operate the machine.
Workshop
Machine Loading
Certificate
Our Partners
Dialead Enterprise
Dialead Stone Machinery is a top manufacturer and supplier of stone equipment in the stone equipment industry. Our company is committed to offering high-quality stone machinery that meet every need of stone processing. We have been in the industry for more than 20 years and now grows to be the most reliable and trustworthy partner for our clients.
At Dialead Stone Machinery, we understand the importance of precision and accuracy when it comes to stone processing. As such, we have invested in state-of-the-art technology and equipment to ensure that all our products meet the highest quality standards. Our team of experts is highly skilled and experienced in the field of stone machinery and is committed to providing our clients with the best possible solutions.
We offer a wide range of stone machinery products, including stone cutting machines, stone polishing machines, stone profiling machines, and diamond tools. Our products are suitable for use in various applications such as construction, decoration, and landscaping.
At Dialead Stone Machinery, we pride ourselves on providing excellent customer service. We work closely with our clients to understand their needs and requirements, and we go the extra mile to ensure that we deliver on our promises. Our team of experts is always available to offer guidance and support throughout the entire process, from product selection to installation and after-sales service.
Stone Exhibition
Dialead Stone Machinery has attended many stone exhibition like Xiamen stone fair, italy verona stone fair,russian moscow stone fair, turkey izmir stone fair, iran tehran stone fair etc. Due to the corona virus spreading in the world since 2020, we have missed the stone exhibition worldwide. Hope we can win over the war against corona virus, Dialead enterprise is looking forward to meeting you again soon!
