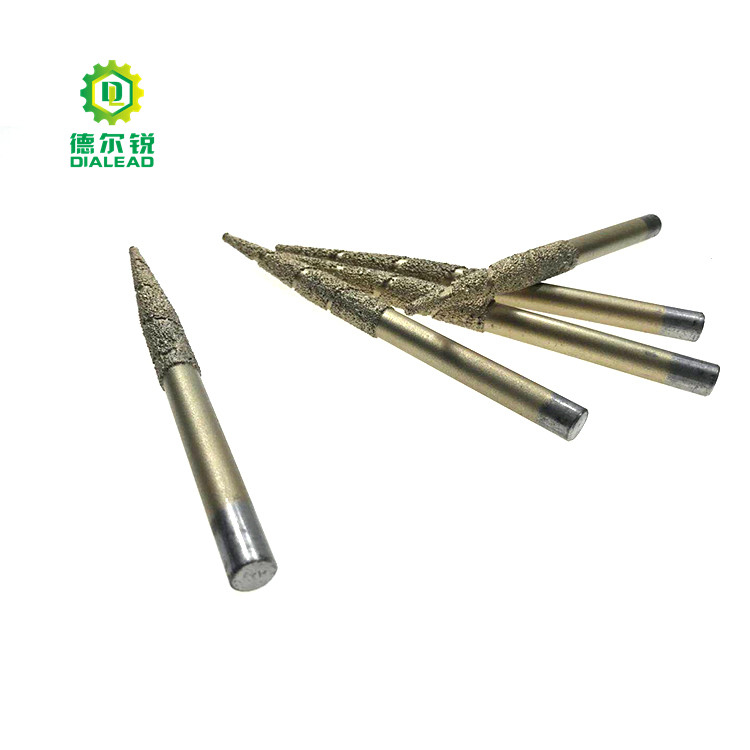

Dialead Vacuum Brazed Diamond Router Engrave Bits adpots advanced vacuum brazed and smelting technology. Made by high quality diamond powder, it is suitable for marble , bluestone , artificial stone, ceramic and other material.
The vacuum brazed engrave bit is suitable for milling the marble, sandstone etc. It is featured by fast carving speed and perfect carving effect. If you want to process the granite, we recommend you to use the sinterred carving bit.
For bottom milling, How to choose the diameter of engrave bit? First we must make sure the diameter of engrave bit can enter the detailed position of stone and the engrave effect can be accepted, then we suggest you choose the engrave bit with the bigger diameter.
For cutting. We suggest you choose the flat head engrave bit to cut. If you have a higher standard of bottom effect, ball head engrave bit is recommended.
To make a conclusion. For the depth within 2cm, 6mm diameter of bit should be selected. For the depth between 2cm to 3cm, 8mm diameter of bit should be selected.for depth between 3cm to 5cm, 10mm diameter of bit should be selected. For depth between 5cm to 8cm, 12mm diameter of bit should be selected.
Technical Data
| Type | Item No | D/mm | d/mm | l/mm | L/mm |
| Conical Head Type | 6-3-12 | 6 | 3 | 12 | 70 |
| Conical Head Type | 6-3-20 | 6 | 3 | 20 | 70 |
| Conical Head Type | 8-3/4-30 | 8 | 3/4 | 30 | 90 |
| Conical Head Type | 10-4/6/8-30 | 10 | 4/6 | 30 | 90 |
| Conical Head Type | 10-4/6/8-40 | 10 | 4/6 | 40 | 90 |
| Conical Head Type(Columnar Relif) | 10-4/6-60 | 10 | 4/6 | 60 | 120 |
| Conical Head Type(Columnar Relif) | 10-4/6-80 | 10 | 4/6 | 80 | 120 |
| Conical Head Type(Columnar Relif) | 10-4/6-100 | 10 | 4/6 | 100 | 160 |
| Conical Head Type(Columnar Relif) | 12-4/6-80 | 12 | 4/6 | 80 | 120 |
| Conical Head Type(Columnar Relif) | 12-4/6-100 | 12 | 4/6 | 100 | 160 |
| Conical Head Type(Columnar Relif) | 16-6/8-100 | 16 | 6/8 | 100 | 169 |
| Conical Head Type(Columnar Relif) | 16-6/8-120 | 16 | 6/8 | 120 | 180 |
| Conical Head Type(Columnar Relif) | 16-6/8-150 | 16 | 6/8 | 150 | 230 |
| Flat Head Type | 6-p-12 | 6 | 6 | 12 | 70 |
| Flat Head Type | 6-p-20 | 6 | 6 | 20 | 70 |
| Flat Head Type | 8-p-20 | 8 | 8 | 20 | 90 |
| Flat Head Type | 10-p-20 | 10 | 10 | 20 | 90 |
| Flat Head Type | 10-p-30 | 10 | 10 | 30 | 90 |
| Mushroom Head Type | 6-10-90 | 6 | 10 | 90 degree | 50 |
| Mushroom Head Type | 8-20-90 | 8 | 20 | 90 degree | 50 |
| Mushroom Head Type | 8-20-120 | 8 | 20 | 120 degree | 50 |
Details of Engrave Bits
 |
Suitable Stone
Blue Stone Marble/onyx Sandstone
 |
Application
 |
 |
Warehouse
 |  |
 |  |
FAQ
Q: Are you manufacturer ?
A: Yes, Dialead is the leading manufacturer of Stone tools, Stone machinery and concrete tools since 1996.
Also we have many authorized agents all over the world to take care of our products' after sell service.
Q: My stone materials are very difficult to process, how can I know whether your tools are suitable for my materials?
A: Dialead suggest your stone samples be sent to our factory’s lab and we will analyze the ingredient of your stone sample. Suitable formula of tools will be offered accordingly. Small quantity is suggested for trial
Q: Can you open the diamond for my segments?
A: Sure. Dialead usually open at least one side of marble segments to ensure the fast cutting in the beginning.
For some special market like Iran, Jordan, Oman etc, all marble segments will have three side opened
Q: Can I print our logo on the carton or product itself?
A: Yes. We will print your logo and other information on the carton or product itself.
But each products will have a MOQ respectively. Please contact our salesman to get more information
Q: How is your after sales service?
A: We are selling our stone tools like diamond segments, diamond saw blades, wire saw, polishing abrasive etc to many
countries and we have agents in different countries who will do after-sales service for us.
Q: Do you offer free samples?
A: For some products which are very mature and popular in your market, sorry Dialead cannot offer free samples.
For some new products which have not been sold to your market yet, Dialead can offer some discounts for you to test.
About Us
Founded in 2001, Quanzhou Dialead Stone Tools Co.,Ltd is a high-tech enterprise for stone processing with its own import and export right that integrates R&D, manufacture and sales into one. With three factories focusing on polishing abrasives and diamond segments/saw blades, Dialead can surely meet your needs of stone processing somewhere without fail. Attributed to its great technical advantages, Dialead has managed to develop a broad range of products such as marble and granite polishing abrasive tools, diamond segments and saw blade, polishing pad, tools for special shape and stone adhesive etc. In ever-lasting pursuit of best quality, Dialead is well received by world-wide customers from Iran, Turkey, India, Pakistan, Russia, Ukraine, U.S.A, Canada and etc.
Located in world-famous stone city Shuitou with more than 3000 stone factories, Dialead finds its own way to tell itself apart from other diamond tools suppliers by testing its products in local stone factories and adjusting its formula to the best before selling to the world.
