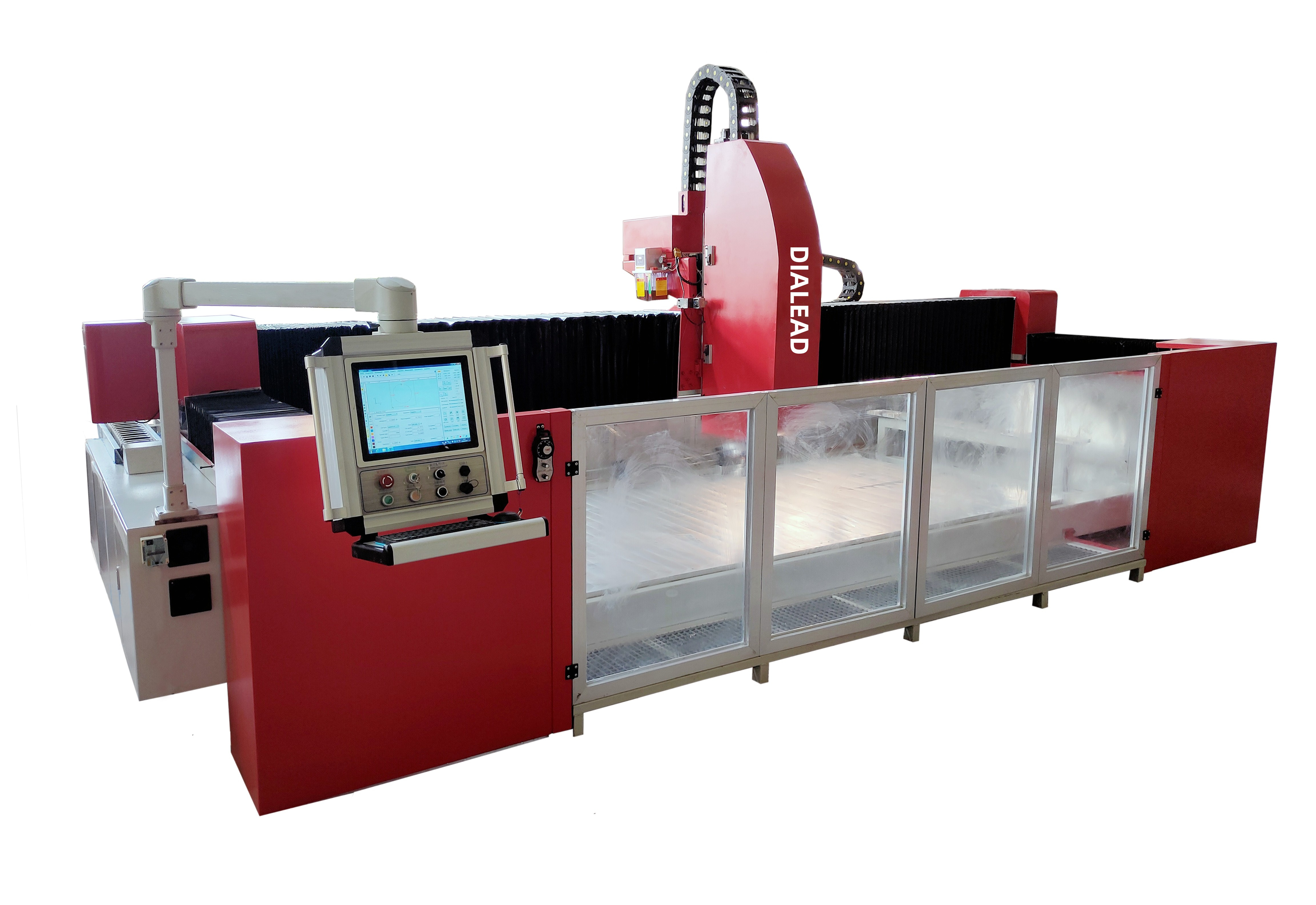

DLCNC-3 axis
DIALEAD
The machine adopts high-end numerical control system control, automatic tool change spindle structure, double-sided in-line tool magazine, high-precision linear guide rail, ball screw drive, oil-immersed track structure, and has the advantages of high intelligence, high precision, and strong stability.
This equipment can not only process various materials, such as marble, granite, ceramics, glass, microcrystalline stone and steel, but also produce various washing tables and kitchen utensils with beautiful curves and luxurious shapes, as well as various complex relief works and 2D and 3D WordArt
Technical Data:
MODEL | UNIT | DLCNC-3 AXIS |
Y AXIS TRAVEL | MM | 1400 |
X AXIS TRAVEL | MM | 3000 |
Z AXIS TRAVEL | MM | 350 |
MAIN MOTOR POWER | KW | 11/15KW |
MAX CUTTING THICKNESS | MM | 300MM |
SPINDLE MOTOR SPEED | RPM | 1-18000 |
AIR SPEED | M/MIN | 15 |
OVERALL SIZE | MM | 5350*2600*2300 |

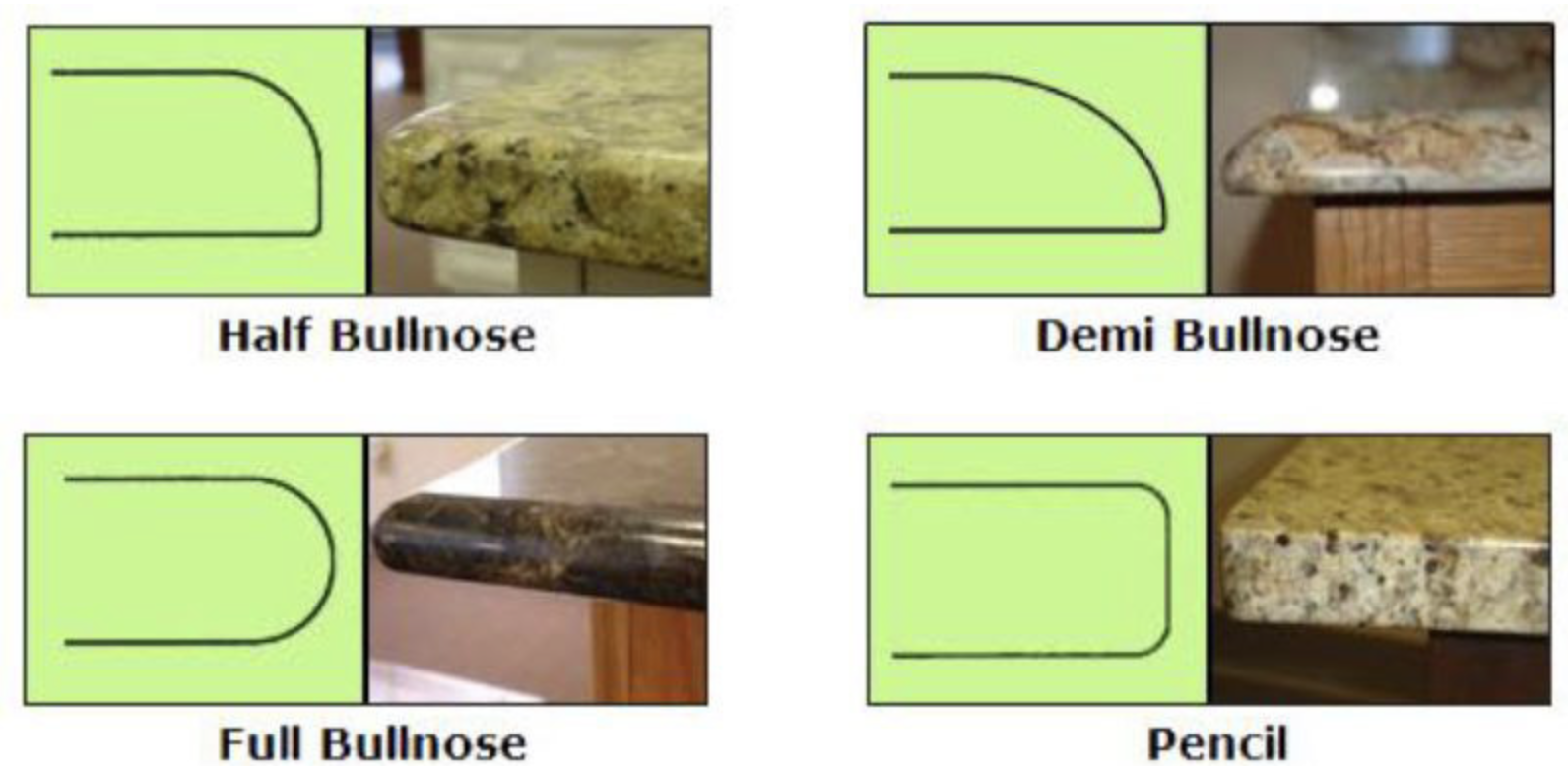

SHAPE CAN BE CUT
 |  |  |
Different Stone Application:
 |
Required Tools
 |  |
After-sales Service
1. Dialead Stone Machinery offer one year's warranty
2. For consumables, Dialead Stone Machinery sends one extra set with the machine container.
3. Dialead Stone Machinery will send the experienced technicians to your factory to install the machine and teach your workers to operate the machine.
Workshop
Machine Loading
Stone Exhibition
Dialead Stone Machinery has attended many stone exhibition like Xiamen stone fair, italy verona stone fair,russian moscow stone fair, turkey izmir stone fair, iran tehran stone fair etc. Due to the corona virus spreading in the world since 2020, we have missed the stone exhibition worldwide. Hope we can win over the war against corona virus, Dialead enterprise is looking forward to meeting you again soon!
