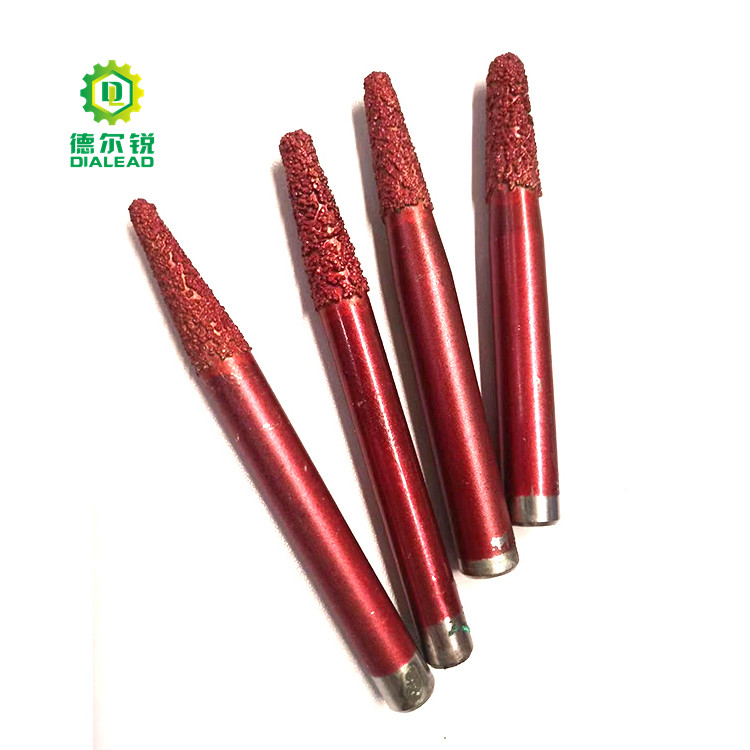

Smelting CNC Engrave Bits for Stone Carving adpots advanced vacuum brazed and smelting technology. Made by high quality diamond powder, it is suitable for marble , bluestone , artificial stone, ceramic and other material.
For the smelting engrave bits, it is the updated product from vacuum brazed one. compare with vaccum brazed one, it works much more aggressively with a longer life.
For bottom milling, How to choose the diameter of engrave bit? First we must make sure the diameter of engrave bit can enter the detailed position of stone and the engrave effect can be accepted, then we suggest you choose the engrave bit with the bigger diameter.
For cutting. We suggest you choose the flat head engrave bit to cut. If you have a higher standard of bottom effect, ball head engrave bit is recommended.
To make a conclusion. For the depth within 2cm, 6mm diameter of bit should be selected. For the depth between 2cm to 3cm, 8mm diameter of bit should be selected.for depth between 3cm to 5cm, 10mm diameter of bit should be selected. For depth between 5cm to 8cm, 12mm diameter of bit should be selected.
Technical Data
| Type | Item No | D/mm | d/mm | l/mm | L/mm |
| Conical Head Type | 6-3-12 | 6 | 3 | 12 | 70 |
| Conical Head Type | 6-3-20 | 6 | 3 | 20 | 70 |
| Conical Head Type | 8-3/4-30 | 8 | 3/4 | 30 | 90 |
| Conical Head Type | 10-4/6/8-30 | 10 | 4/6 | 30 | 90 |
| Conical Head Type | 10-4/6/8-40 | 10 | 4/6 | 40 | 90 |
| Conical Head Type(Columnar Relif) | 10-4/6-60 | 10 | 4/6 | 60 | 120 |
| Conical Head Type(Columnar Relif) | 10-4/6-80 | 10 | 4/6 | 80 | 120 |
| Conical Head Type(Columnar Relif) | 10-4/6-100 | 10 | 4/6 | 100 | 160 |
| Conical Head Type(Columnar Relif) | 12-4/6-80 | 12 | 4/6 | 80 | 120 |
| Conical Head Type(Columnar Relif) | 12-4/6-100 | 12 | 4/6 | 100 | 160 |
| Conical Head Type(Columnar Relif) | 16-6/8-100 | 16 | 6/8 | 100 | 169 |
| Conical Head Type(Columnar Relif) | 16-6/8-120 | 16 | 6/8 | 120 | 180 |
| Conical Head Type(Columnar Relif) | 16-6/8-150 | 16 | 6/8 | 150 | 230 |
| Flat Head Type | 6-p-12 | 6 | 6 | 12 | 70 |
| Flat Head Type | 6-p-20 | 6 | 6 | 20 | 70 |
| Flat Head Type | 8-p-20 | 8 | 8 | 20 | 90 |
| Flat Head Type | 10-p-20 | 10 | 10 | 20 | 90 |
| Flat Head Type | 10-p-30 | 10 | 10 | 30 | 90 |
| Mushroom Head Type | 6-10-90 | 6 | 10 | 90 degree | 50 |
| Mushroom Head Type | 8-20-90 | 8 | 20 | 90 degree | 50 |
| Mushroom Head Type | 8-20-120 | 8 | 20 | 120 degree | 50 |
Details of Engrave Bits
 |
Suitable Stone
Blue Stone Marble/onyx Sandstone
 |
Application
 |
 |
Warehouse
 |  |
 |  |
Why Choose us
1. 17 Years Experience in Stone Tools Production
2. Stone Tools Experience in over 50 countries
3. 4000 cartons daily production of Frankfurt Abrasive Stone
4. Contracting 40 production lines with over 3500000m2 polishing capacity
5. Full production line from Quarry opening, Block Cutting, Slab Cutting and Polishing
About Us
Founded in 2001, Quanzhou Dialead Stone Tools Co.,Ltd is a high-tech enterprise for stone processing with its own import and export right that integrates R&D, manufacture and sales into one. With three factories focusing on polishing abrasives and diamond segments/saw blades, Dialead can surely meet your needs of stone processing somewhere without fail. Attributed to its great technical advantages, Dialead has managed to develop a broad range of products such as marble and granite polishing abrasive tools, diamond segments and saw blade, polishing pad, tools for special shape and stone adhesive etc. In ever-lasting pursuit of best quality, Dialead is well received by world-wide customers from Iran, Turkey, India, Pakistan, Russia, Ukraine, U.S.A, Canada and etc.
Located in world-famous stone city Shuitou with more than 3000 stone factories, Dialead finds its own way to tell itself apart from other diamond tools suppliers by testing its products in local stone factories and adjusting its formula to the best before selling to the world.
